Project Profiles

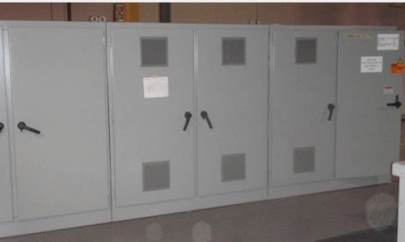

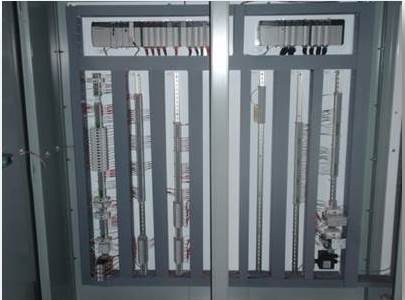

Breakfast Bar Line, Cereal Manufacturing, ControlLogix , Field Service, Commissioning, Start Up

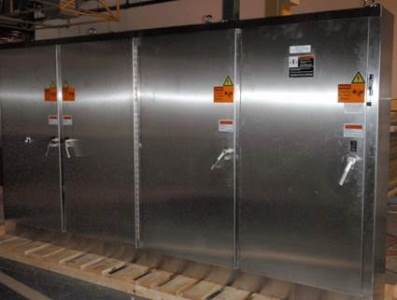

Utility and Packaging Control Panel, Large Drive Cabinet, UL508A, Water, Wastewater

Breakfast bar line for fortune 500 company
Utility and packaging control panels food plant in New Mexico
Rockwell Automation Controls Platform
Provided one, six-bay control cabinet and one remote I/O cabinet
UL508A Solution Type 12
Expedited five week delivery

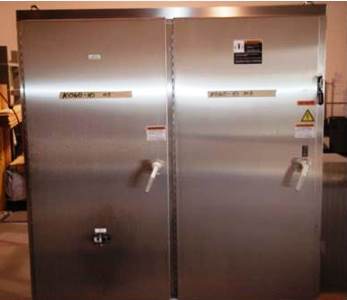

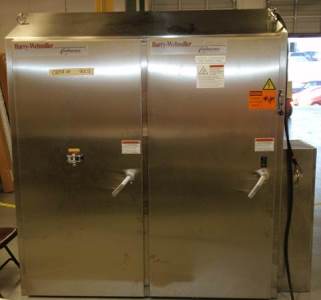

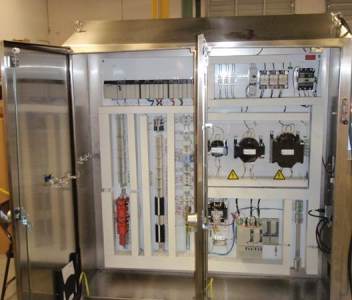

Food Process Control Cabinet, Equipment Control Upgrades, PLC Migration

Two-door Control Cabinet

Food process control cabinet for fortune 500 consumer food company
Batch mixing control cabinet
UL508A Type 4X Solution
One two-door control cabinet
4 week turn time

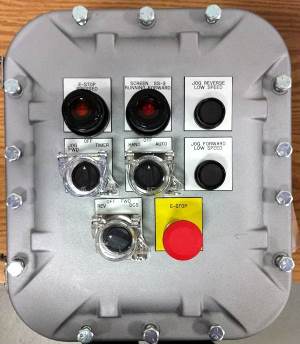

Electrical Control Panel Assembly, UL698A, ATEX

Water reclamation project for City of Chicago
10 hazardous location operator stations provided
Siemens operators and Hubbel enclosures
Design/build project
Controls design and submittals
Material procurement and expediting
Electrical control panel assembly
Control panel testing and FAT performed at ControlTech Automation
Crating, packing, loading and shipping logistics

Filler Safety Upgrade, Allen Bradley, Low Voltage Control Panel, 36 X 36 Control Panel, Self Certifying UL508A

Project for Fortune 500 soft drink company
Filler safety upgrade project
Rockwell Safety PLC Platform
Design/build project
Material procurement and expediting
Electrical control panel assembly
Control panel testing and FAT performed at ControlTech Automation
Crating, packing, loading and shipping logistics

Acclimation, PLC Migration, Installation Field Services Termination within Control Panel

Electrical Control Panel Assembly, Panelview, Operator Station, HMI, Hope Industrial

Washington State Acclimation Project
Rockwell PLC Control
UL508A Listed Type 12
Controls a $6M acclimation facility feeding Lake Wenatchee, WA
Material procurement and expediting
Electrical control panel assembly
Control panel testing and FAT performed at ControlTech Automation
Crating, packing, loading and shipping logistics

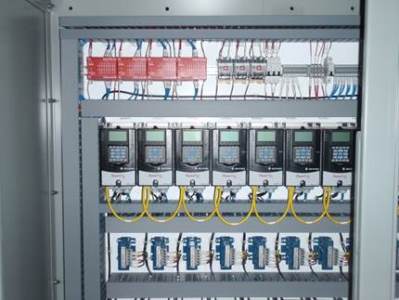

Uniquely Designed VFD Panels and PLC Cabinets

Outdoor winemaking application
Scope included design and build of 19 uniquely designed VFD Panels and 33 PLC Cabinets.
Environmentally rated equipment with customized NEMA 4X cooling features
Solar protection provided for external components
On-site job walk and design suggestions.
Lead time reduction by offering reliable alternatives
Material procurement and expediting
Electrical control panel assembly
Control panel testing and FAT performed at ControlTech Automation
Crating, packing, loading and shipping logistics

Electrical Control Panel Assembly for Large Steel Manufacturing - 1

Electrical Control Panel Assembly for Large Steel Company - 2

For United States Steel
6 week delivery
Lead time reduction by offering reliable alternatives
Material procurement and expediting
Electrical control panel assembly
Control panel testing and FAT performed at ControlTech Automation
Crating, packing, loading and shipping logistics

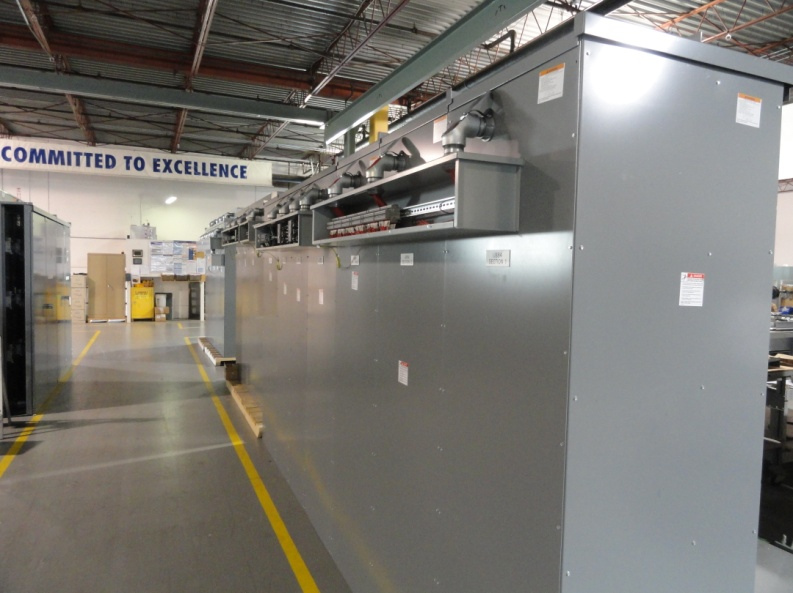

Switchgear Assemblies Control equipment addition, Power Generation, Value Add, Square D,

Coal fired power plant
Added value to Schneider switchgear
Designed, assembled, delivered switchgear assemblies
Provided site audit and design services
Worked seamlessly with the supply chain
Customized Schneider MCC design and submittals
UL design assistance
Expedited delivery
Material procurement and expediting
Mechanical/electrical control panel assembly
Programming and FAT performed at ControlTech Automation
Crating, packing, loading and shipping logistics

Turnkey Control Solution for Water Treatment Project 1

Turnkey Control Solution for Water Treatment Project 2, Fiberglass Enclosure, Scada Control Panel, Remote Well Monitoring

Turnkey Control Solution for Water Treatment Project 3, Emerson, Marshalling Cabinet, Chemical Processing, Pharmaceutical

Water treatment project
5 week turn time for design and build.
Turn-key control solution
Specification of Bristol Control Wave PLC Cabinet
Submittal package development
Lead time reduction by offering reliable alternatives
Material procurement and expediting
Electrical control panel assembly
Control panel testing and FAT performed at ControlTech Automation
Crating, packing, loading and shipping logistics

Design Services for Refinery, Chemical Plant, Process Chemical, Control Panel Design

Design services for refinery
2 week turn time
Designed to meet Refinery Standards
Specification of Triconex control cabinet
Full set of submittal documents and schematics

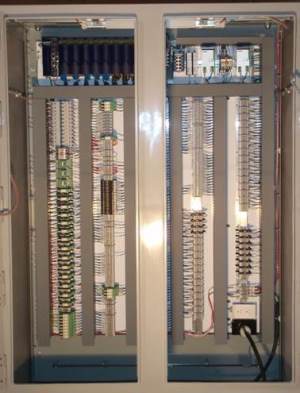

Chemical Processing Application and Processing Plant Controls, Two Door Control Panel, Pulp & Paper

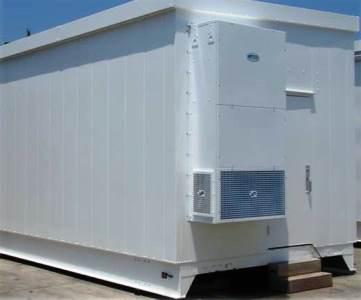

Procurement and Fabrication of Control Panels, Control House, Equipment Center

Chemical processing application and processing plant controls
4 week turn time
Procurement and fabrication of 2 PLC Control Panels, DCS Control Panel and Instrumentation Cabinet for equipment center installation
Included supply of Rockwell, Hoffman and Modicon Equipment
Recommended layout design improvements for functionality
Lead time reduction by offering reliable alternatives
Material procurement and expediting
Crating, packing, loading and shipping logistics

Chemical Processing Application, Life Sciences, Operator Panel, Push Button Station

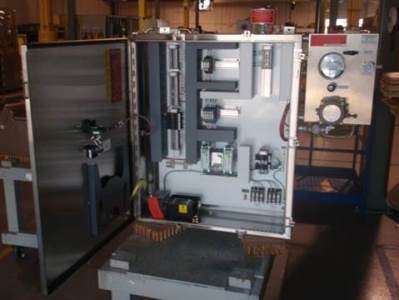

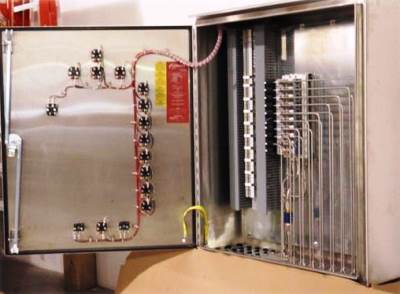

Procurement fabrication of stainless steel valve cabinet and control station, Festo, Stainless Tubing, Consumer Packaged Goods

Chemical processing application
Stainless steel tubing and bulkheads

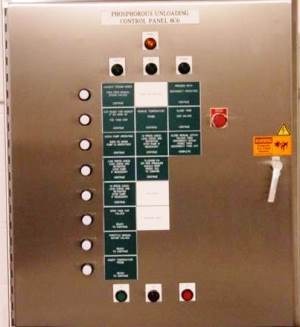

Phosphorous unloading panel
Procurement and fabrication of a stainless steel valve cabinet and control station for installation in Louisiana
Recommended layout design improvements for functionality
Lead time reduction by offering reliable alternatives
Material procurement and expediting
Crating, packing, loading and shipping logistics

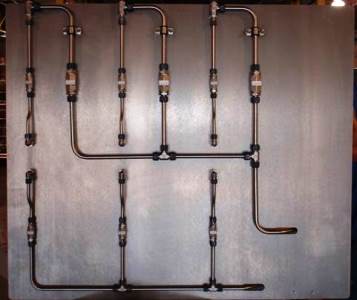

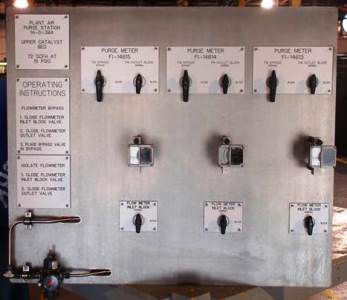

Refinery Air Supply Application

Stainless Steel Tubing and Fittings

Refinery air supply application
5 week turn time
Stainless steel tubing and fittings
Lead time reduction by offering reliable alternatives
Material procurement and expediting
Mechanical control panel designed and assembled for plug and play operation
Control panel testing and FAT performed at ControlTech Automation
Crating, packing, loading and shipping logistics

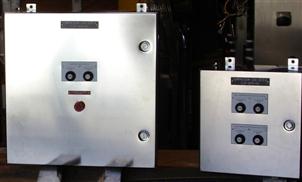

Controls for Offshore Oil Platform Gas Recovery System

Zone rated ATEX Operator Stations and Marshalling Cabinets

Controls for offshore oil platform gas recovery system
Zone rated ATEX operator stations and marshaling cabinets

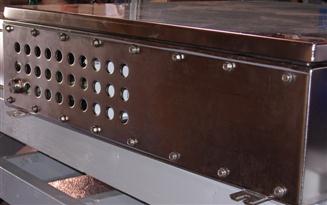

Removable gland plate for ease of installation
ControlTech Automation engineered design included enclosure sizing, heat calculations, and submittal drawings

Refinery Application - Hazardous Location Solution

Refinery application
Hazardous location solution
Purged control cabinet
Corrosion resistant
6 week delivery

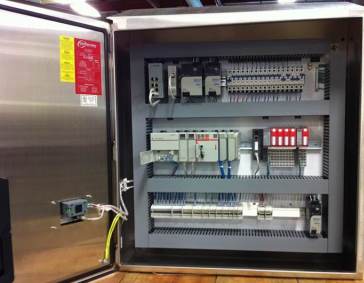

Food Process Control Panel

UL508A Type 4X Slope Top Enclosure

Food process control panel
UL508A Type 4X Slope Top Enclosure
4 week turn time
Installed in Chicago, IL

Process, Utility And Packaging Control Cabinets for Food Facility

Rockwell Automation Controls Platform

Process, utility and packaging control cabinets for food facility in Albuquerque, NM
4 bay process control cabinet Type 4X
9 bay modular packaging control cabinet Type 12
UL508A Labeled Equipment
Rockwell Automation Controls Platform
8 week delivery

Filler Safety Upgrade, Allen Bradley, Low Voltage Control Panel, 36 X 36 Control Panel, Self Certifying UL508A

Project for Fortune 500 soft drink company
Filler safety upgrade project
Rockwell Safety PLC Platform
Design/build project
Material procurement and expediting
Electrical control panel assembly
Control panel testing and FAT performed at ControlTech Automation
Crating, packing, loading and shipping logistics
